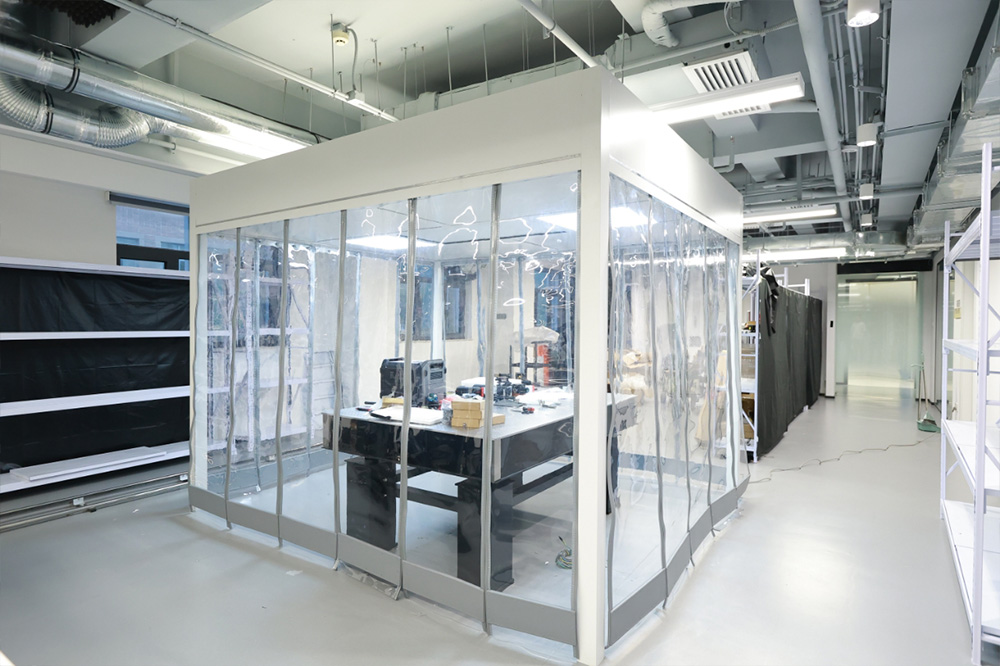

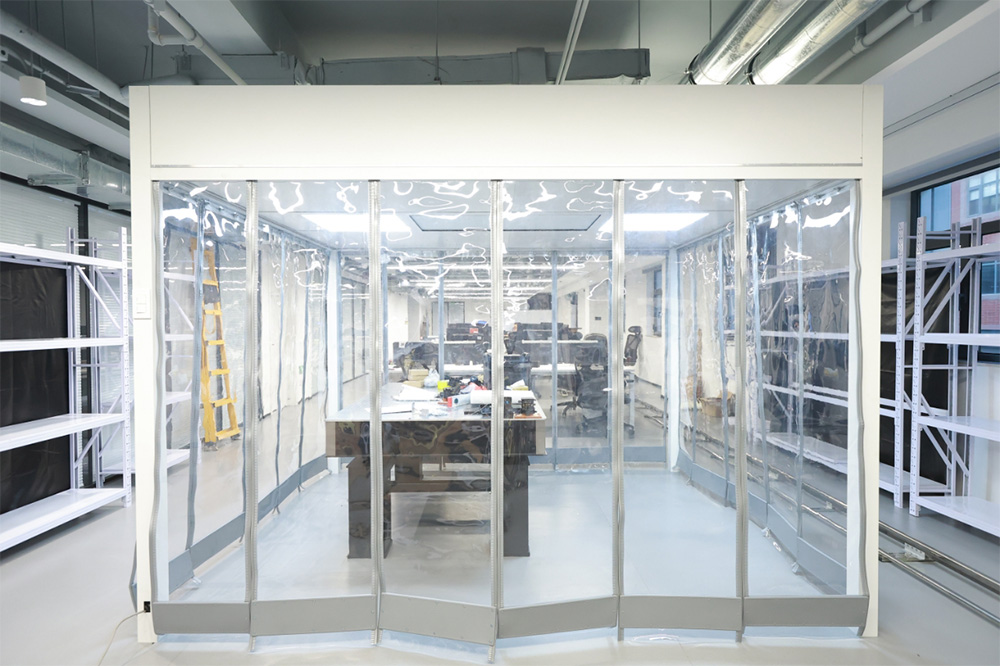

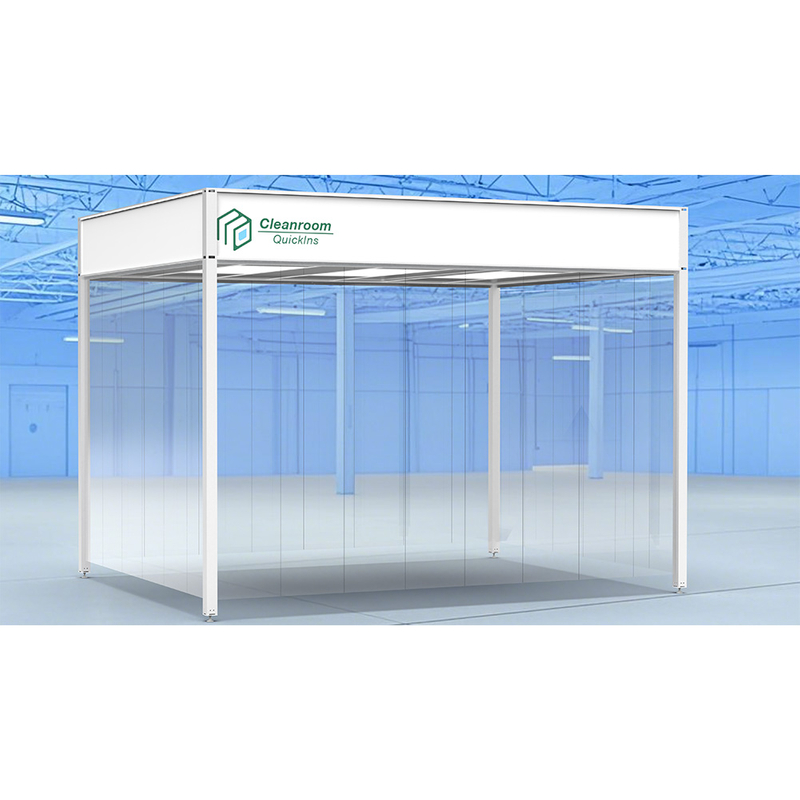

The Clean Booth is a cutting-edge modular, self-contained clean environment solution designed to create a high-purity controlled space within ordinary workshops or rooms. Unlike traditional fixed cleanrooms, it offers a flexible and cost-effective way to achieve localized cleanliness control, targeting industries where precision manufacturing and contamination-free production are critical. Equipped with a ceiling-mounted FFU (Fan Filter Unit) system paired with HEPA or ULPA filters, the booth ensures efficient air purification, maintaining a cleanliness level of ISO Class 5–7. Its lightweight and prefabricated structure enables rapid installation and easy relocation, making it an ideal choice for temporary production lines, product testing areas, or facilities requiring scalable clean space solutions.
The booth’s load-bearing frame is constructed from high-strength aluminum profile or steel structure. Aluminum profiles are preferred for their lightweight, corrosion resistance, and ease of assembly, while steel structures offer enhanced stability for large-scale booths. The modular frame design allows for quick disassembly and reassembly, adapting to different on-site layout requirements.

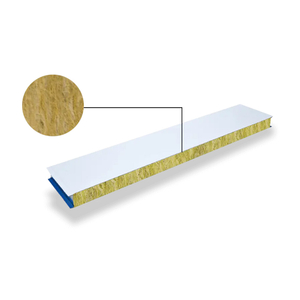

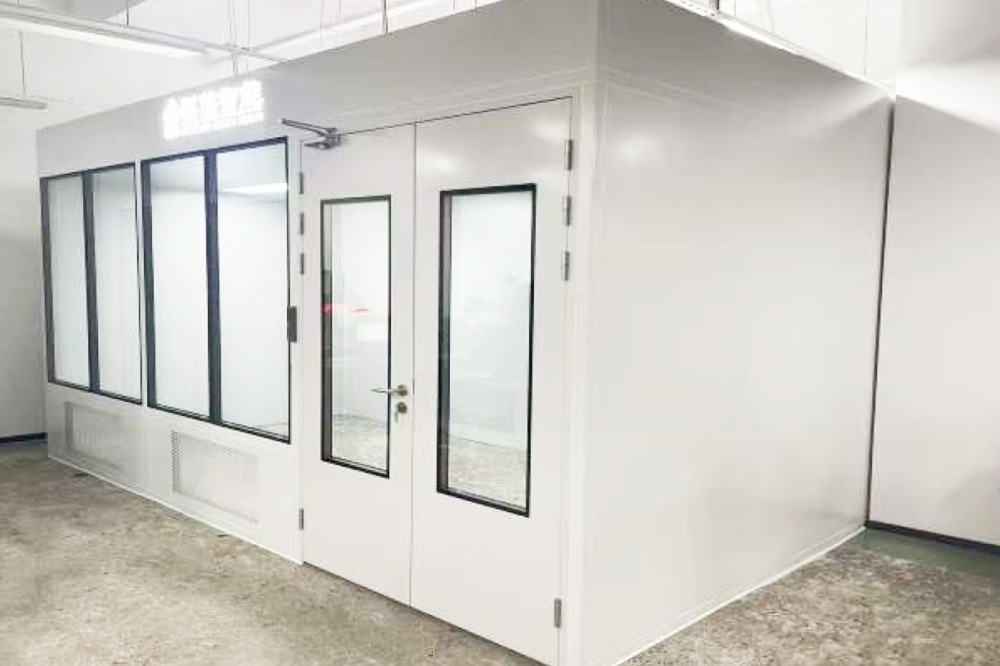

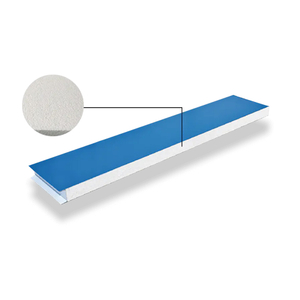

The enclosure adopts tempered glass, acrylic panels, or customizable cleanroom sandwich panels (with EPS, MgO, or rock wool core options). Tempered glass and acrylic panels provide excellent transparency, allowing real-time observation of the internal production process; sandwich panels, on the other hand, offer superior thermal insulation and soundproofing performance, suitable for environments with strict temperature and noise control needs.

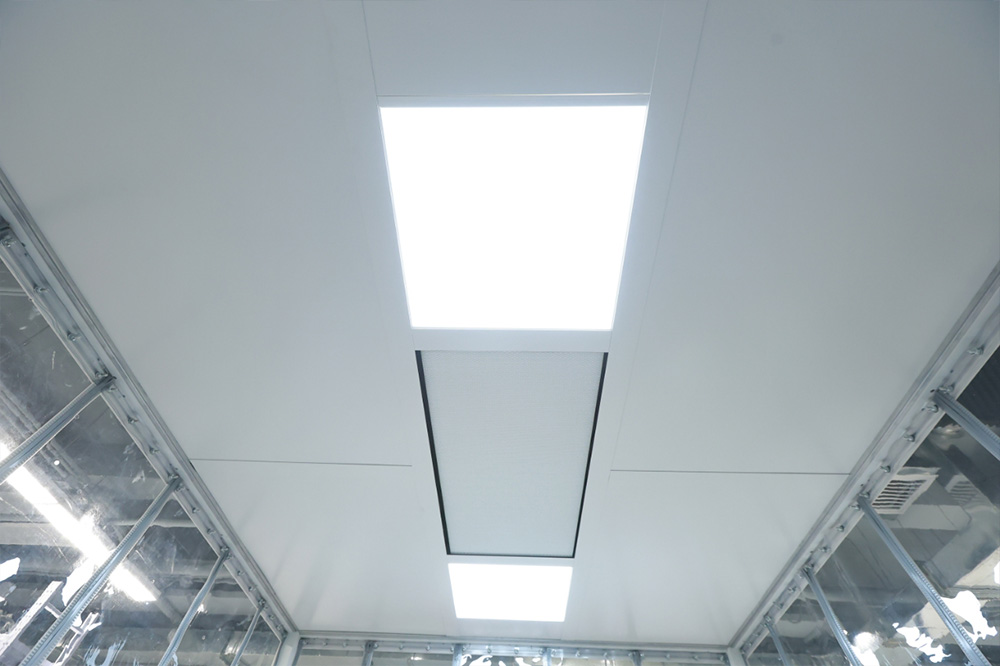

The core of the booth’s cleanliness lies in its modular ceiling system integrated with FFU + HEPA/ULPA filters. The FFU units draw in ambient air, which is filtered through HEPA/ULPA filters to remove 99.99% of particles as small as 0.3 microns, delivering uniform, high-quality clean air to the workspace. The ceiling is also equipped with integrated LED clean lights, providing glare-free, high-brightness illumination that meets the lighting requirements of precision operations.
The booth can be installed on the existing factory floor or upgraded with optional anti-static flooring, which is essential for electronics and semiconductor manufacturing to prevent electrostatic damage to sensitive components. The access points are fitted with cleanroom swing or sliding doors, designed with airtight seals to maintain consistent internal air pressure and prevent external contamination from entering.
|
|
|
|
|
|
Item | Details |
Frame Material | High-strength aluminum profile / steel structure |
Wall/Enclosure Options | Tempered glass; acrylic panels; EPS/MgO/rock wool sandwich panels |
Ceiling System | Modular design + FFU (HEPA/ULPA filters) + integrated LED clean lights |
Door Type | Cleanroom swing doors / sliding doors |
Floor Solution | Existing floor / anti-static flooring (optional) |
Cleanliness Level | ISO Class 5–7 |
Optional Components | Soft curtains, hard walls, intelligent monitoring system, mobile casters |
We provide comprehensive customization services to tailor the Clean Booth to your specific production needs:
Size & Layout Customization: The booth’s length, width, and height can be fully adjusted according to the available workshop space and production process flow. We can design single-zone or multi-zone booths to accommodate different operational requirements.

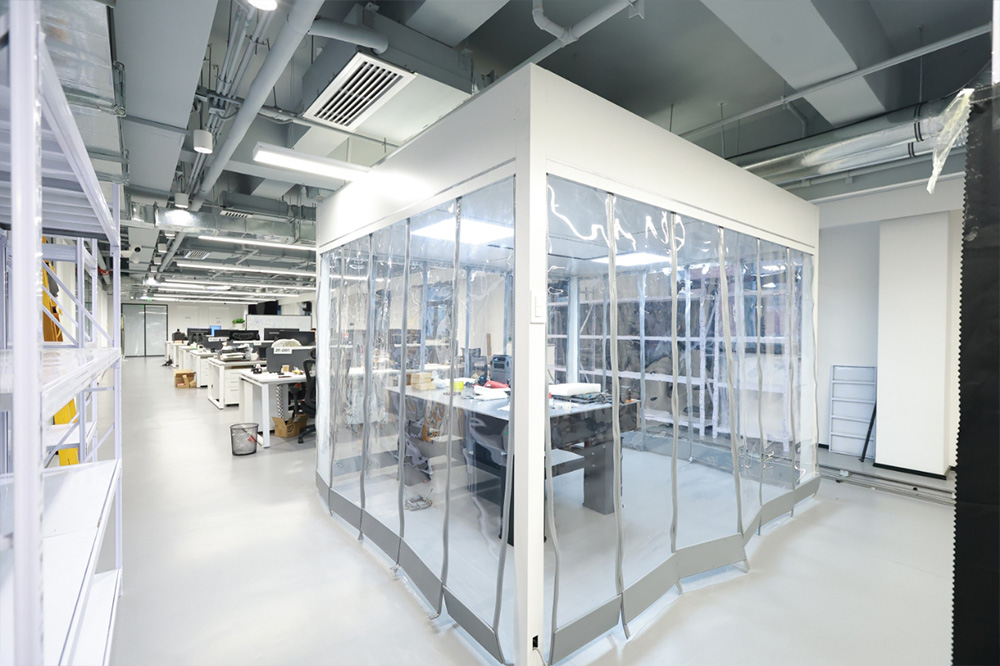

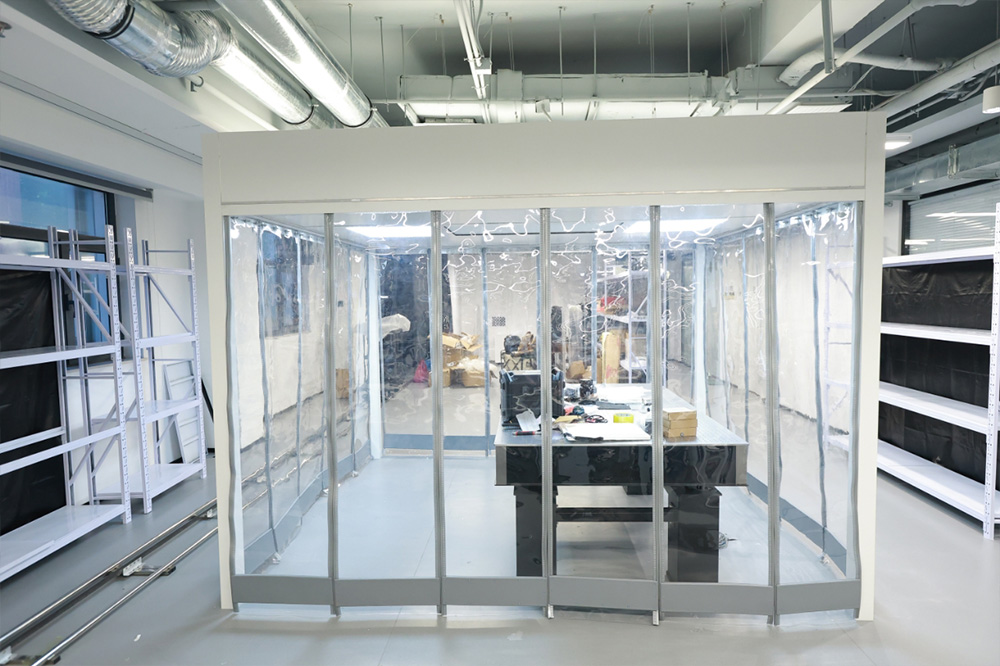

Component Customization: Clients can select from a range of optional components, including anti-static flooring, soft curtains for flexible partitioning, hard walls for enhanced isolation, and intelligent monitoring systems to track real-time cleanliness and air pressure data.
Mobility Customization: For facilities requiring frequent layout adjustments, we can equip the booth with mobile casters, enabling easy relocation and reconfiguration without compromising structural integrity.
High-Efficiency Air Purification: The FFU + HEPA/ULPA filter system ensures a particle removal efficiency of over 99.99%, maintaining a stable ISO Class 5–7 cleanliness level to meet the strict requirements of precision manufacturing.
Cost-Effective & Time-Saving: Compared to traditional cleanrooms, the Clean Booth reduces construction time by 60% and investment costs by 40% on average. Its modular design eliminates the need for complex on-site construction, allowing for quick installation and commissioning.
Flexibility & Scalability: The booth can be easily expanded or modified to adapt to changing production demands, making it suitable for both small-batch testing and large-scale production lines.
Compliance with Industry Standards: The product complies with international cleanroom standards and is certified for use in electronics, medical device manufacturing, and pharmaceutical industries, ensuring regulatory compliance for your products.
The Clean Booth is widely applicable across industries that demand controlled, contamination-free production environments, including:
Electronics Manufacturing: Semiconductor chip production, PCB assembly, and precision electronic component testing.
Medical Device Assembly: Manufacturing of surgical instruments, implantable medical devices, and diagnostic equipment.
Pharmaceutical & Biotechnology: Pharmaceutical packaging, sterile drug preparation, and biological sample processing.
Precision Machining & Inspection: Ultra-precision mechanical part manufacturing, optical component testing, and aerospace component assembly.
Research Laboratories: Academic and industrial labs conducting experiments requiring a clean and controlled environment.
Are you seeking a flexible, high-performance Clean Booth to elevate your production environment’s cleanliness level without the high cost of traditional cleanrooms? Reach out to us today to inquire about customized solutions tailored to your industry and production needs. Click add to basket to take the first step toward building a contamination-free workspace, and let our expert team support your precision manufacturing goals with reliable, scalable cleanroom technology.
