The Yanxin Anti-fall Ceiling Device is a specialized safety and purification integrated equipment developed for the ceiling system of large-scale clean rooms. It not only has a high-efficiency air filtration function but also provides reliable anti-fall protection for the ceiling structure. With high filtration efficiency, adjustable air volume and multi-model design, this device can meet the different needs of clean rooms of various sizes. It is an essential supporting equipment for ensuring the structural safety and air cleanliness of high-standard clean rooms.
The device has a filtration efficiency of ≥99.95% for particles ≥0.3μm (tested by sodium flame method), which can effectively capture fine dust particles in the air and ensure the air quality of the clean room.
The stainless steel multi-angle nozzles with a wind speed of ≥20m/s can form a uniform air curtain, which not only purifies the air but also prevents dust from accumulating on the ceiling surface.
The device adopts a reinforced steel structure design, which can effectively bear the weight of the ceiling and prevent the ceiling from falling off due to external forces or long-term use.
The tunnel part is made of stainless steel sheet, which has high structural strength and corrosion resistance, ensuring the long-term stability of the anti-fall function.

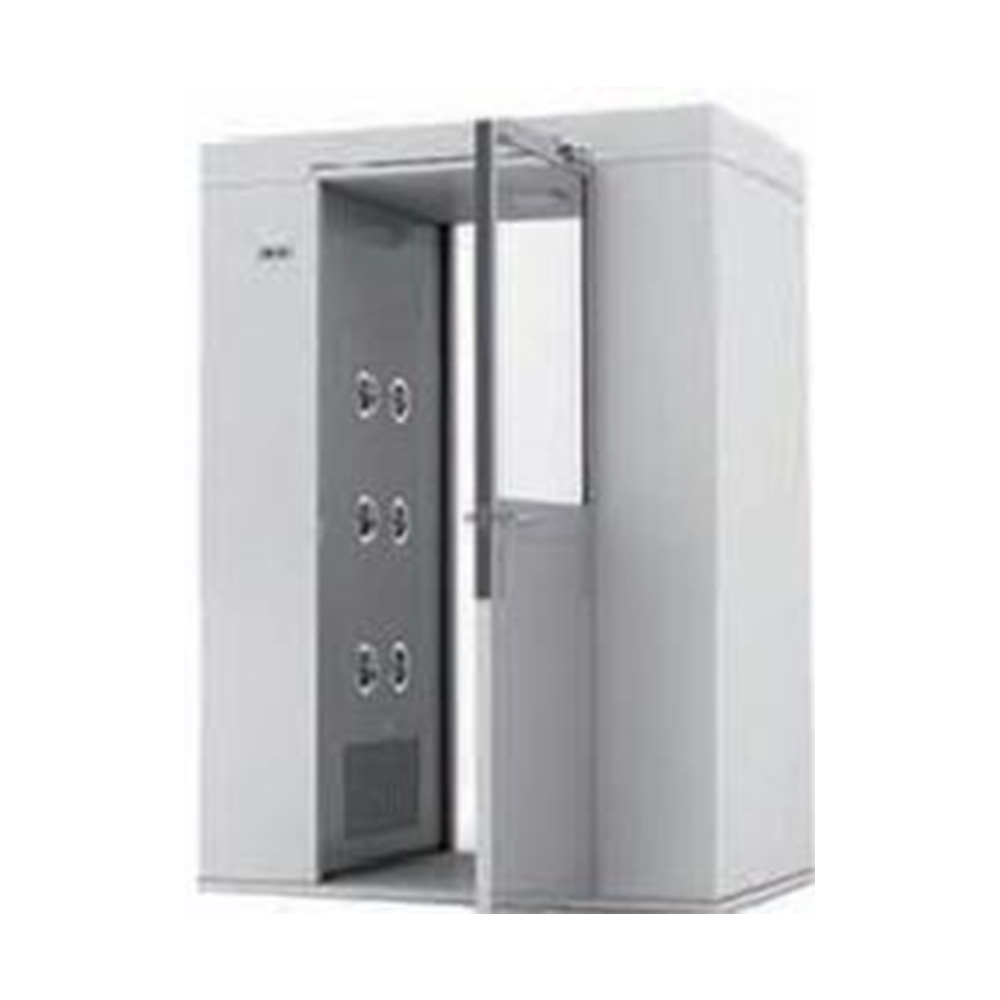

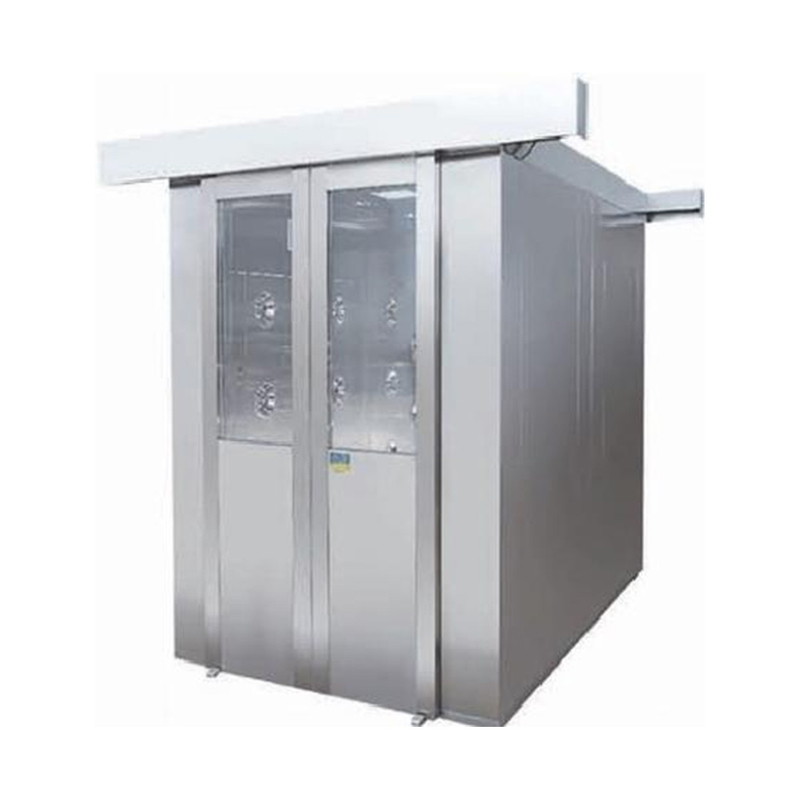

We offer four models including AAS-1S-1200, AAS-1D-1500, AAS-1T-1500 and AAS-2D-2100, which are suitable for single-person single-blow, single-person double-blow, double-person double-blow and cargo blow scenarios respectively.
The interior trim can be customized with SUS304 stainless steel according to customer needs, further improving the corrosion resistance and cleanliness of the equipment.
Specification Item | AAS-1S-1200 | AAS-1D-1500 | AAS-1T-1500 | AAS-2D-2100 |
Filtration Efficiency | ≥99.95% for ≥0.3μm particles (sodium flame method) | Same as left | Same as left | Same as left |
Nozzle Wind Speed | ≥20m/s | Same as left | Same as left | Same as left |
Number of Nozzles | 6 | 12 | 18 | 24 |
Air Volume | 1000m³/h | 2000m³/h | 3000m³/h | 4000m³/h |
Power Supply | AC 380V, 3Φ 50Hz | Same as left | Same as left | Same as left |
Max Power Consumption | 0.55kW | 1.1kW | 1.5kW | 2.2kW |
Weight | ~300kg | ~500kg | ~600kg | ~900kg |
Outer Dimension (W×D×H, mm) | 1200×1000×2100 | 1500×1000×2100 | 1500×1600×2100 | 2100×2000×2100 |
Inner Dimension (W1×D1×H1, mm) | 800×900×1950 | 900×900×1950 | 900×1500×1950 | 1500×1900×1960 |
Large-scale Pharmaceutical Clean Rooms: Provide ceiling anti-fall protection and high-efficiency air filtration, meeting the strict cleanliness and safety requirements of drug production.
Electronic Chip Manufacturing Workshops: Ensure the air cleanliness of the workshop and the structural safety of the ceiling, avoiding chip pollution and production safety accidents.
Biological Safety Laboratories: Maintain the sterility of the laboratory environment and prevent ceiling collapse risks, ensuring the safety of researchers.
Precision Instrument Manufacturing Factories: Provide a clean and safe production environment for precision instruments, improving the quality and reliability of products.
Our anti-fall ceiling device integrates safety protection and air purification functions, realizing dual effects with one device and saving equipment investment costs for customers.
The product has high filtration efficiency and stable air volume performance, which can meet the cleanliness requirements of various high-standard clean rooms.
We offer multiple models to adapt to different scenarios such as personnel and cargo, and provide customized interior trim services.
The equipment adopts a modular design, which is easy to install and maintain, reducing the later operation and maintenance costs of customers.
Are you looking for a professional anti-fall ceiling device to ensure the safety and cleanliness of your large-scale clean room? Don’t miss our Yanxin Anti-fall Ceiling Device! Contact our sales team now to inquire about product customization solutions and detailed quotations. Click the "Inquire" button or add the product to your basket, and we will provide you with professional technical support and after-sales service to escort your production safety and cleanliness management.
